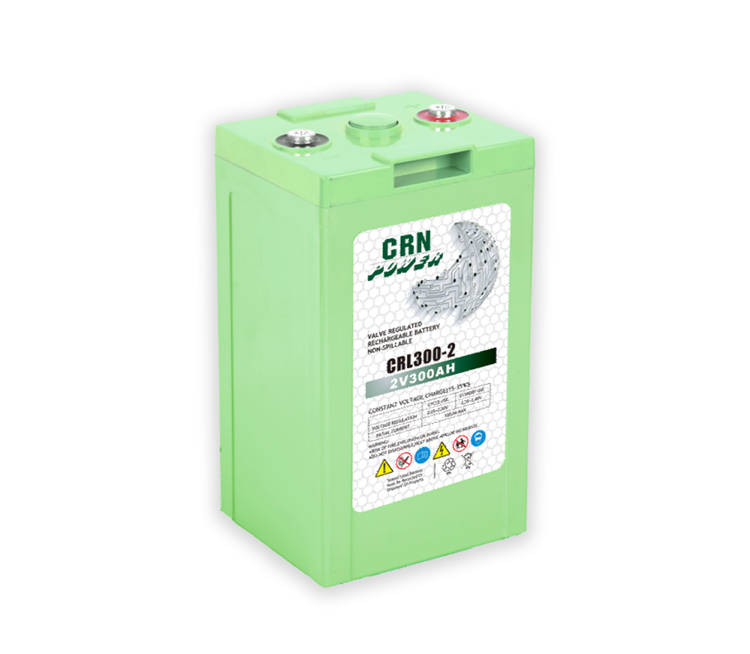

CRL(2volt AGM battery )

Technical characteristics and advantages of CRL series :

Rated capacity: 50-3000AH

Operating temperature range: -20 ℃ ~ 50 ℃

Fully sealed maintenance-free design

Design life up to 10-12 years (20 ℃)

Groove internalization technology, the monomer voltage balance is better

Absorbent Glass Mat battery technology

Pb-Ca-Sn multi-alloy formula to enhance the corrosion resistance of the grid, to extend battery life

Battery case and cover with impact resistance, anti-aging flame retardant ABS material

Flame retardant safety valve effectively prevent the external fire ignited the internal gas

Gas compound rate  more than 98%, battery without water

Low internal resistance of the copper pole to ensure high current safe discharge without heat

Very low Self-discharge rate , storage 1 year without additional charge

Easy to install, according to the site space and load-bearing horizontal or vertical installation.

CRL系列（2V系列）
序号 电池型号  Type 额定电压 Rated  Voltage 额定容量Rated Capacity 尺寸(Dimension) 重量 Weight 端子
长 Length 宽 Width 高 Height 总高 Total Height
V Ah mm mm mm mm Kg
1 CRL 50-2 2 50 161 50 166 166 2.8 M6
2 CRL 100-2 2 100 171 72 205 210 5.8 M6
3 CRL 150-2 2 150 172 102 205 227 7.5 M6
4 CRL 200-2 2 200 173 111 330 366 13 M8
5 CRL 300-2 2 300 171 151 330 366 19 M8
6 CRL 400-2 2 400 211 176 330 366 25 M8
7 CRL 500-2 2 500 241 172 330 366 31 M8
8 CRL 600-2 2 600 301 175 330 366 36 M8
9 CRL 800-2 2 800 410 176 330 366 50 M8
10 CRL 1000-2 2 1000 475 175 330 366 61 M8
11 CRL 1500-2 2 1500 401 351 342 378 105 M8
12 CRL 2000-2 2 2000 491 351 343 383 123 M8
13 CRL 2500-2 2 2500 712 353 341 382 152 M8
14 CRL 3000-2 2 3000 712 353 341 382 181 M8
